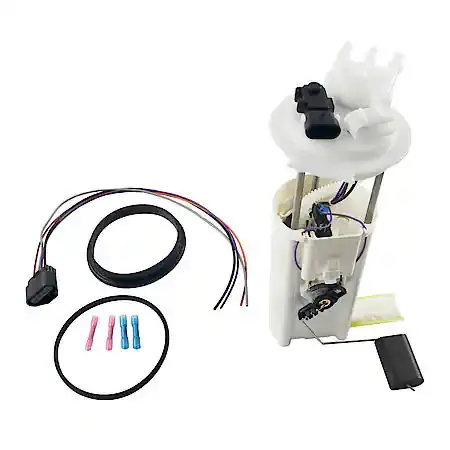

M2335288 Carquest Fuel Pump Assembly

Buick -

Rendezvous (2002-2003), V6 3.4 (2004)

Pontiac -

Aztek (2001-2004)

Outlet Outside Diameter (mm):    42802
Outlet Quantity:    1
Outlet Type:    Quick Connect
Performance Rated:    Yes
Port Quantity:    3
Pressure Range (PSI):    80-109
Pressure Rating (PSI):    80-109
PSI Shut Off (PSI):    80-109
Pump Only Or Module:    Module
Pump Tag Number:    E3521M
Pump Type:    Turbine
Regulator Included:    No
Seal And Lock Ring Included:    No
Sender Included:    Yes
Sending Unit Included:    Yes
Strainer Included:    Yes
Terminal Gender:    Male
Terminal Quantity:    4
Type:    Turbine
United States Coast Guard Approved:    No
Universal Or Specific Fit:    Specific Fit
Voltage (VDC):    12
Wire Quantity:    4
Wiring Harness Included:    Yes
Working Pressure (PSI):    43.5-65
Gasket Or Seal Material:    Rubber
Gaskets Included:    No
GPH (Free Flow) Rating (gph):    40-50
Grade:    Standard Replacement
Ground:    No
Height (mm):    285
In Tank:    Yes
Gasket Or Seal Included:    Yes
Inlet Diameter (mm):    8
Inlet Outside Diameter (mm):    11
Inlet Quantity:    1
Inlet Type:    Strainer
Inline Pump:    No
Internal Or External:    Internal and External
Length (mm):    200
Maximum Flow Rating (gph):    32
Maximum Pressure (PSI):    80-109
Minimum Flow Rate (gph):    27
Minimum Free Flow Rate (gph):    40
Minimum Pressure (PSI):    80
Mounting Bracket Included:    No
Mounting Hardware Included:    Yes
Mounting Type:    In tank
Negative Ground:    No
New Or Remanufactured:    New
Compatible Fuel(s):    Gas
Connector Gender:    Male
Connector Quantity:    1
Connector Shape:    rectangle
Depth (mm):    17
Electric:    Yes
Electric Or Mechanical:    Electric
Float Included:    Yes
Amperage Draw:    8.5
C.A.R.T. Approved:    No
Free Flow Rating (gph):    40-50
Fuel Pump Inlet Type:    Strainer
Fuel Sending Unit Included:    Yes
